Model
A-1001 - 48 x 21 - 4400 lb = 117 lb
A-1002 - 48 x 27 - 4400 lb = 123 lb
A-1003 - 48 x 21 - 5500 lb = 121lb
A-1004 - 48 x 27 - 5500 lb = 127 lb
A-1005 - 48 x 27 - 6600 lb = 127 lb
- 3 position hand control-Raise,Lower,Neutral.
- Chrome piston and ram for smooth operation and prevents excessive wear on the pump & seal.
- Forks lowering speed is controllable, with overload valve to avoid overloading.
- PU wheels. Non-marking, low noise wheels.
- Excellent turning angle of 190 degrees facilities.
- 3" lowered and 7.5" raised height.
- 6.3" polyurethane steering wheels.
- 2.8" polyurethane fork wheels.

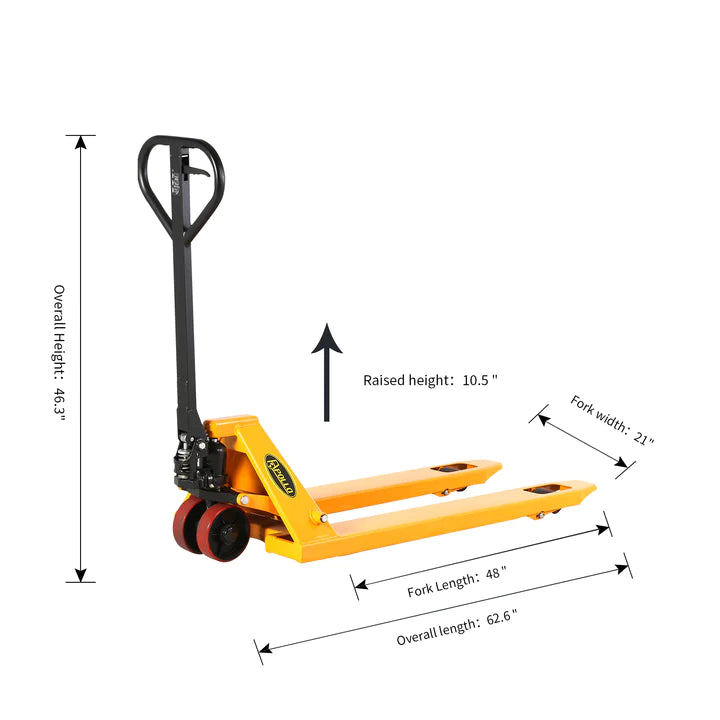

- Overall length：62.5''

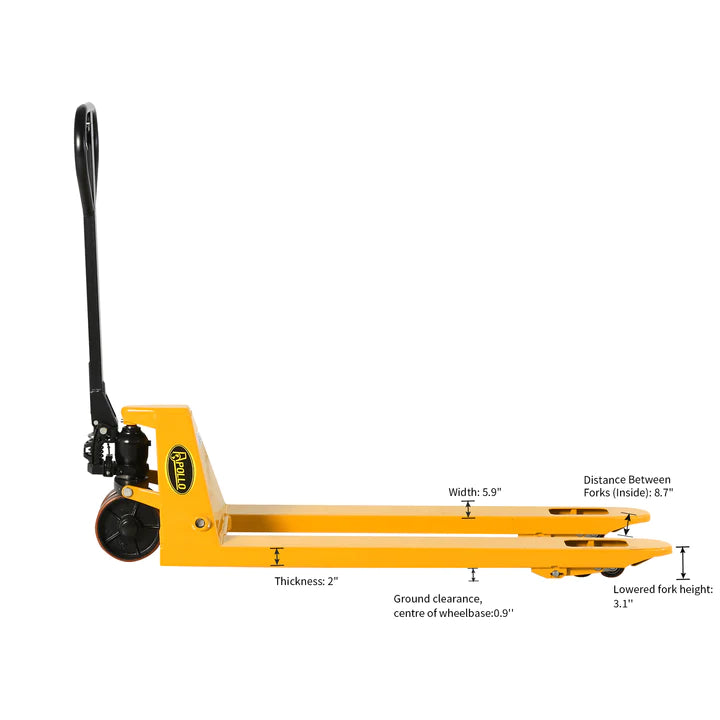

- Single fork width：5.9''
- Fork thickness：2.1''
- Distance Between Forks (Inside)：8.7''
- Fork width 21" - 27"
